Black Silicon Carbide Sic Powder F400 with Micro Hardness Hv3100-3280 and Bulk Density 1.45-1.56g/cm3
Product Description
Black Silicon Carbide
Because of the rarity of natural moissanite, most silicon carbide is synthetic. It is used as an abrasive, and more recently as a semiconductor and diamond simulant of gem quality. The simplest manufacturing process is to combine silica sand and carbon in an Acheson graphite electric resistance furnace at a high temperature, between 1,600 °C (2,910 °F) and 2,500 °C (4,530 °F). Fine SiO2 particles in plant material (e.g. rice husks) can be converted to SiC by heating in the excess carbon from the organic material. The silica fume, which is a byproduct of producing silicon metal and ferrosilicon alloys, also can be converted to SiC by heating with graphite at 1,500 °C (2,730 °F).
Product Parameters
Black Silicon Carbide Chemical Composition (%)
| Grit | Sic | F.C. | Fe2O3 |
| F12-F90 | ≥98.50 | <0.20 | ≤0.60 |
| F100-F150 | ≥98.00 | <0.30 | ≤0.80 |
| F180-F220 | ≥97.00 | <0.30 | ≤1.20 |
| F230-F400 | ≥96.00 | <0.40 | ≤1.20 |
| F500-F800 | ≥95.00 | <0.40 | ≤1.20 |
| F1000-F1200 | ≥93.00 | <0.50 | ≤1.20 |
| P12-P90 | ≥98.50 | <0.20 | ≤0.60 |
| P100-P150 | ≥98.00 | <0.30 | ≤0.80 |
| P180-P220 | ≥97.00 | <0.30 | ≤1.20 |
| P230-P500 | ≥96.00 | <0.40 | ≤1.20 |
| P600-P1500 | ≥95.00 | <0.40 | ≤1.20 |
| P2000-P2500 | ≥93.00 | <0.50 | ≤1.20 |
Black Silicon Carbide Physical Index
| Grits | Bulk Density
g/cm3 | High Density
g/cm3 | Grits | Bulk Density
g/cm3 | High Density
g/cm3 |
| F16 ~ F24 | 1.42~1.50 | ≥1.50 | F100 | 1.36~1.45 | ≥1.45 |
| F30 ~ F40 | 1.42~1.50 | ≥1.50 | F120 | 1.34~1.43 | ≥1.43 |
| F46 ~ F54 | 1.43~1.51 | ≥1.51 | F150 | 1.32~1.41 | ≥1.41 |
| F60 ~ F70 | 1.40~1.48 | ≥1.48 | F180 | 1.31~1.40 | ≥1.40 |
| F80 | 1.38~1.46 | ≥1.46 | F220 | 1.31~1.40 | ≥1.40 |
| F90 | 1.38~1.45 | ≥1.45 | | | |

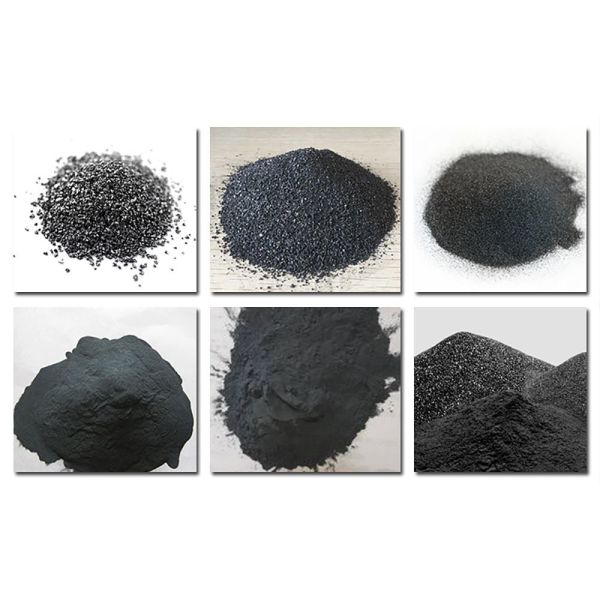

Black Silicon Carbide Size Available
F12-F1200, P12-P2500
0-1mm, 1-3mm, 6/10, 10/18, 200mesh, 325mesh
Other special specifications could be supplied on request.
Recommend Products
Application Scenarios
For abrasive: Lapping, Polishing , Coatings, Grinding , Pressure blasting.
For refractory: Refractory media for casting or metallurgical linings ,Technical Ceramics.
For new-type application: Heat exchangers ,Semiconductor process equipment , Liquid filtration.
Packaging & Shipping
1. 25kg woven bag, 40 woven bags/jumbo bag.
2. 25kg woven bag, 40 woven bags/pallet
3. 25kg paper bag, 40 paper bags/pallet
4. 25kg paper bag, 40 paper bags/paper box
Company Profile
Xinli Wear-resistant Materials has completed inspection equipment and quality control system, and obtained ISO9001:2015 quality management system certification.
FAQ
Q: Are you a trading company or manufacturer?
A: We are a manufacturer enterprises of abrasives over 20years.our products have competitive price and quality guarantee. Welcome to send your inquiry!
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but you need to pay the cost of freight.
Q:How can I get the new price of a product?
A: Please provide the exact or approximate quantity, packing details, destination port or special requirements, then we could give you the price accordingly.
Q:How do you guarantee the product quality?
A: We have the quality control system ISO9001:2008, and it's been followed strictly. We also have the professional QC team, and each our package worker will be in charge of the final inspection according to the QC instruction before packing.
Q: How long is the lead time?
A: Except OEM products, generally 5-7 days for trial order, 10-20 days for mass order once deposit received.
Q:How about your after-sale service ?
A: If any technical or quality problem after you receive the cargo, you can contact us any time.If the problem caused by us, we will send you free goods for replacement or refund your loss.
Q:Can we have a visit to your factory?
A:You're warmly welcoming to visit our plant. And please inform me of your scheduled time in advance, we'll pick you up and arrange the agenda for you.
Q:Can I use my own design package?
A:Yes, The package can be with your logo.
